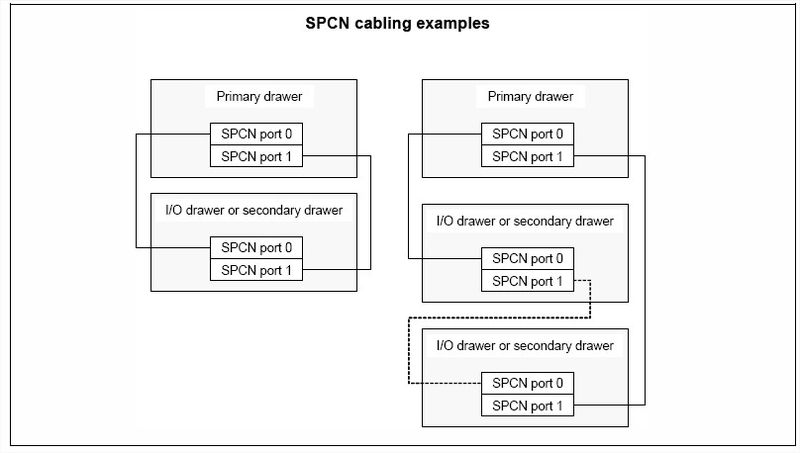

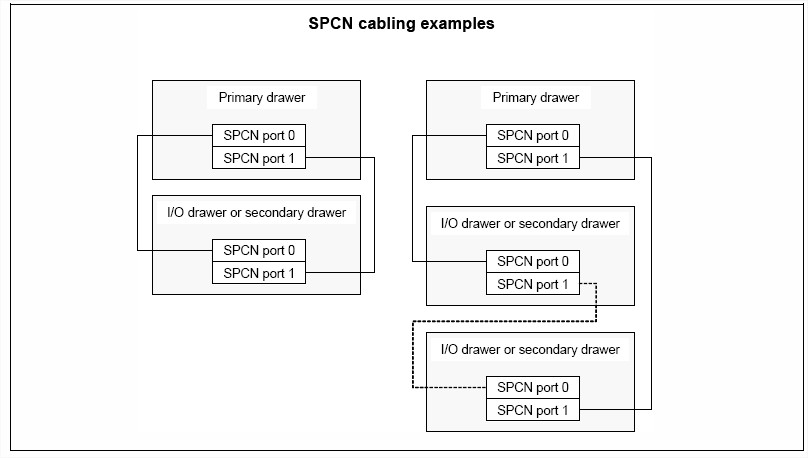

SPCN3 is used to control and monitor the status of power and cooling within the I/O drawer. SPCN is a loop: Cabling starts from SPCN port 0 on the p5-570 to SPCN port 0 on the first I/O drawer. The loop is closed, connecting the SPCN port 1 of the I/O drawer back to port 1 of the p5-570 system. If you have more than one I/O drawer, you continue the loop, connecting the next drawer (or drawers) with the same rule.
There are different SPCN cables to satisfy different length requirements: � SPCN cable drawer-to-drawer, 2 m (FC 6001) � SPCN cable drawer-to-drawer, 3 m (FC 6006) � SPCN cable rack-to-rack, 6 m (FC 6008) � SPCN cable rack-to-rack, 15 m (FC 6007) � SPCN cable rack-to-rack, 30 m (FC 6029)
Source: redp9117 - IBM System P5 570 Technical Overview and Introduction.
